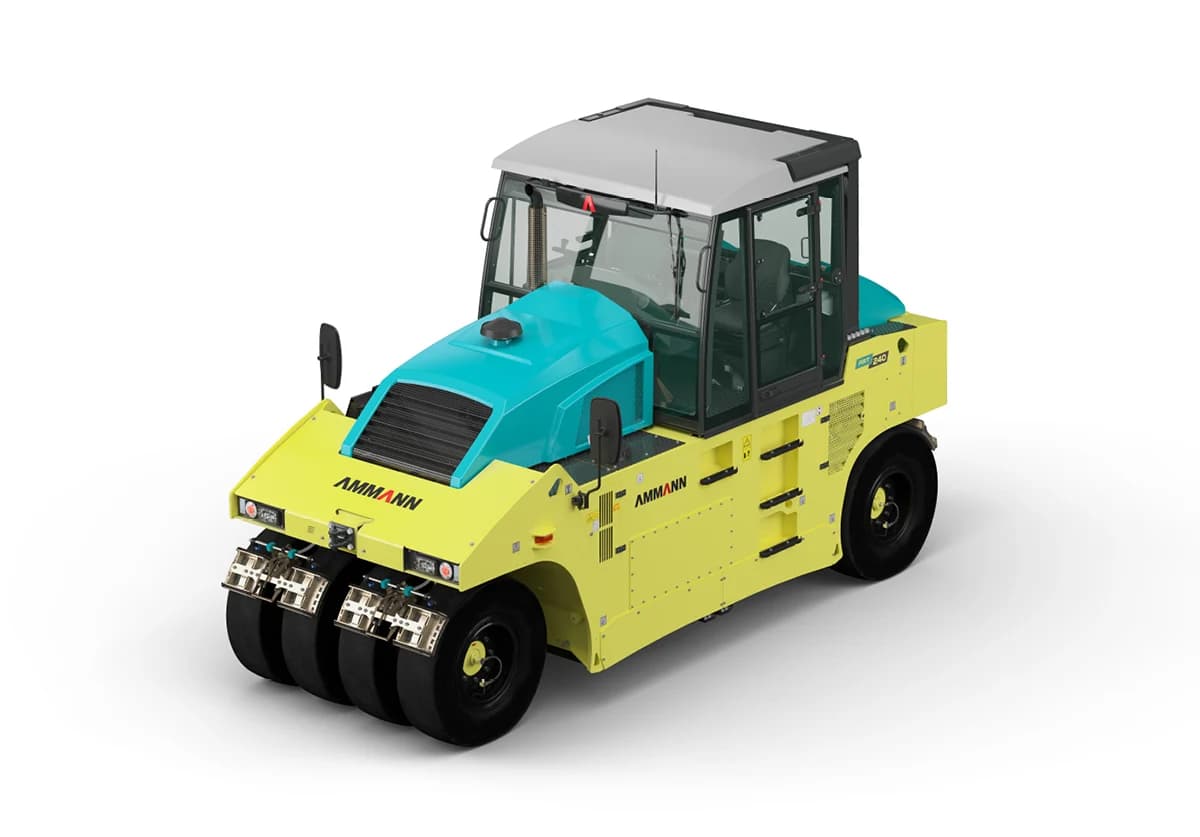

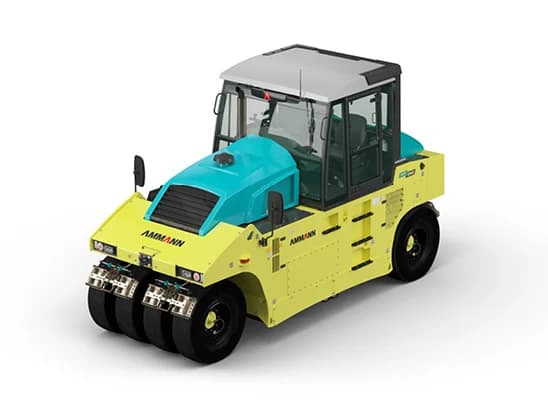

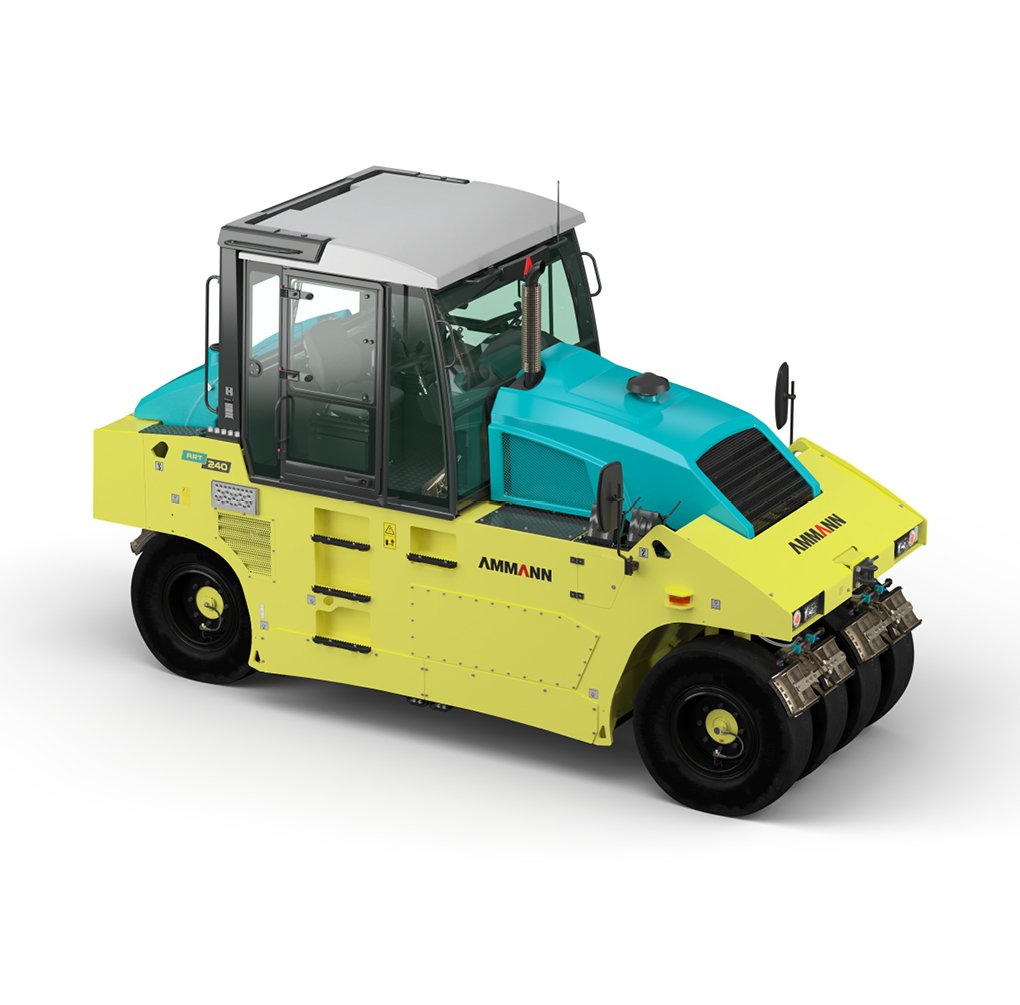

ART 240
PNEUMATIC TYRED ROLLER
Stage IIIA
1986 mm
10100 kg
Productivity, comfort, convenience
BUILT FOR VERSATILITY

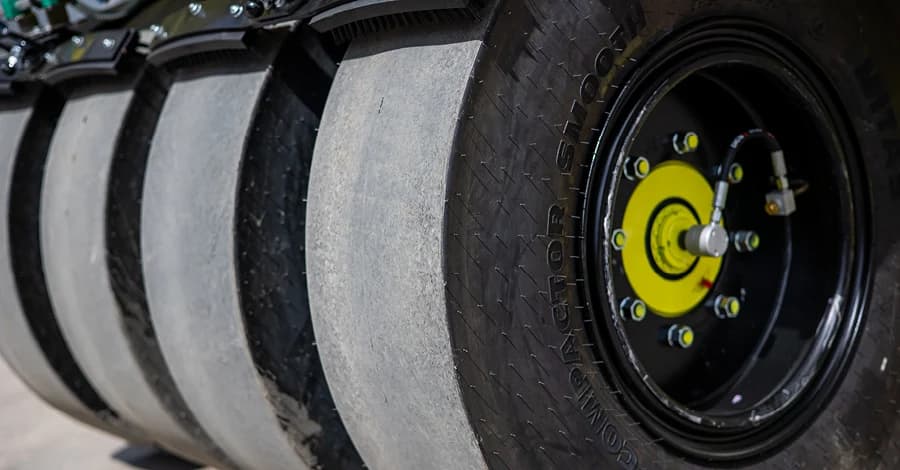

Tyre pressure control from the platform
Standard on the roller is the Air-On-Run system, which enables operators to adjust and control pressure from the platform.
Specifications
Standard
2 operators places
4+4 diagonal Mitas tyres
Ammann color design and decals
Ammann Traction Control
Battery disconnection switch
Central inflation system “Air on Run”
Centralized draining points
Foldable brushes
Options
A/C
Additional documentation printed
Additional mirrors
AmmannCare Silver
AmmannCare Gold
AmmannCare Platinum
AmmannCare Diamond
Back-up alarm
DIMENSIONS
| ART 240 | - | - | |
|---|---|---|---|
| Machine length | 5030 mm | - | - |
| Machine length (thermal aprons) | 5780 mm | - | - |
| Wheelbase | 3780 mm | - | - |
| Machine height | 3130 mm | - | - |
| Machine height (top of operator seat) | 2380 mm | - | - |
| Drum Width | 1986 mm | - | - |
| Machine width | 2100 mm | - | - |
| Machine width (thermal aprons) | 2310 mm | - | - |
| Tire overlap | 50 mm | - | - |
| Ground clearance | 280 mm | - | - |
WEIGHT & OPERATING CHARACTERISTICS
ENGINE
MISCELLANEOUS
MAXIMUM RECOMMENDED COMPACTED LIFT THICKNESS AT OPTIMAL WORKING CONDITIONS
